Explore the RAP
Vacuum Insulated Panels(VIP)
10x better thermal efficiency than foam insulation
Forkliftable
Real time Tracking Device Integration
End-to-end visibility to the supply chain with integrated real time tracking device with real time product condition and location readings - accessed via our cloud-based platform, CSafe Connect
Control Panel
Intuitive easy-to-use control panel to minimize user training time and effort
User-selectable temperature
Set points from +4°C to +25°C in 1°C increments
Power Cables
Rechargeable anywhere in the world with included multi-system charging cables
Flexible Composite Exterior Panels
High-performance aramid fiber for enhanced container durability
Cargo security seals on door handles
Large Cargo Chamber
Easily manage 4 standard US pallets or 5 standard Euro pallets in any orientation
Wide-opening twin doors for easy cargo access
Advanced Temperature System (TMS)
Array of 10 temperature sensors located throughout the cargo for high level of redundancy in temperature and system control
Maintains precise payload temperature in extreme ambient temperatures (-30 C to +54 C)
Payload
4 US or 5 EU Pallets
Shipment Visibility
Integrated real-time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+15°C
MAX
+8°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the RKN
Real time Tracking Device Integration
End-to-end visibility to the supply chain with integrated real time tracking device with real-time product condition and location readings - accessed via our cloud-based platform, CSafe Connect
Control Panel
Intuitive easy-to-use control panel to minimize user training time and effort
User-selectable temperature
Set points from +4°C to +25°C in 1°C increments
Power Cables
Rechargeable anywhere in the world with included multi-system charging cables
Vacuum Insulated Panels(VIP)
10x better thermal efficiency than foam insulation
Forkliftable
Flexible Composite Exterior Panels
High-performance aramid fiber for enhanced container durability
Cargo security seals on door handles
Large Cargo Chamber
Easily manage 1 standard US or EU pallet in any orientation
Wide-opening twin doors for easy cargo access
Advanced Temperature System (TMS)
Array of 10 temperature sensors located throughout the cargo for high level of redundancy in temperature and system control
Maintains precise payload temperature in extreme ambient temperatures (-30 C to +54 C)
Payload
4 US or 5 EU Pallets
Shipment Visibility
Integrated real-time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+15°C
MAX
+8°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the APS Single
Forkliftable from all four
sides for easy handling
Vacuum Insulated Panels
10x better efficiency than traditional foam panels
Thermal Capacity Indicator
CSafe Connect displays the estimated remaining shipment duration in real time
Real time Tracking Device Integration
End-to-end visibility to the supply chain with integrated real time tracking device with real-time product condition and location readings - accessed via our cloud-based platform, CSafe Connect.
120+ Hour Duration Against ISTA 7D Long duration performance qualified to ISTA 7D for all temperature ranges:
- +2°C to +8°C
- 15°C to 25°C
- <-20°C
Advanced PCM coolants enable safe storage and hibernation
No dry ice required for frozen shipments
No-stress Conditioning Services
Designed for load-and-go shipments
Cargo Chamber
Easily manage 1 standard US pallet or Euro pallet in any orientation
Payload
4 US or 5 EU Pallets
Shipment Visibility
Integrated real-time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+15°C
MAX
<-20°C
+8°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the APS Double
Vacuum Insulated Panels
10x better efficiency than traditional foam panels
Forkliftable from all four
sides for easy handling
Real time Tracking Device Integration
End-to-end visibility to the supply chain with integrated real time tracking device with real-time product condition and location readings - accessed via our cloud-based platform, CSafe Connect.
Long duration performance qualified to ISTA 7D for all temperature ranges:
- 2°C to 8°C
- 15°C to 25°C
- <-20°C
Thermal Capacity Indicator
CSafe Connect displays the estimated remaining shipment duration in real time
Advanced PCM coolants enable safe storage and hibernation
No dry ice required for frozen shipments
Large Cargo Chamber
Easily manage 2 standard US pallets or Euro pallets
No-stress Conditioning Services
Designed for load-and-go shipments
Payload
4 US or 5 EU Pallets
Shipment Visibility
Integrated real-time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+15°C
MAX
<-20°C
+8°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the Silverpod & Silverpod RE
Patented and award winning design
Various sizes and temperature ranges available
Molded base or wooden base pallet available
One-size refrigerants fit all pallet shipper sizes
Patented fold-flat coolant sleeves simplify the packing process
Patented interlocking design simplifies assembly
Reinforced Durability
Coated exterior panels and extended edge and corner cap protection to enable reuse
Integrated TracSafe Data Logger for Real-Time Tracking
Visibility to conditional data through viewing window and via CSafe Connect
Minimal Environmental Impact
Reusable components and recyclable Pharmacool PCM coolants
Simple Set-up
Quicker, more efficient assembly with universal packing process
Payload
100-2994L
Shipment Visibility
Integrated real-time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+15°C
+2°C
MAX
-20°C
+8°C
+25°C
+30°C
Scan the QR Code to Download the Data Sheet

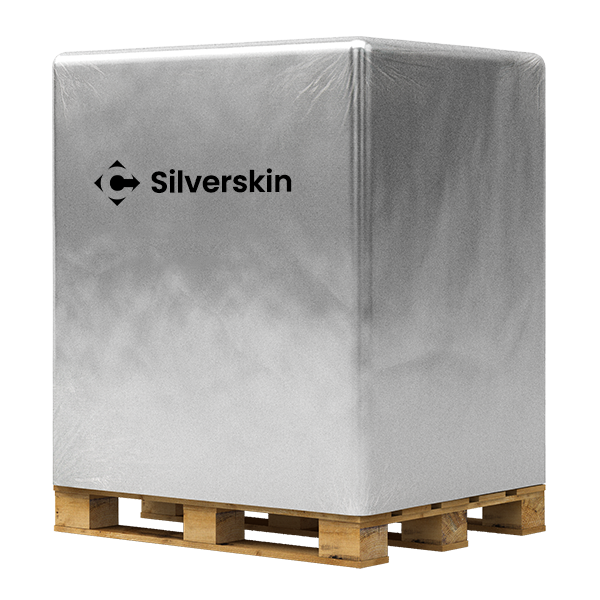

Explore Silverskin Thermal Covers
Payload
All Standard Footprints and Heights
Flexibility
Various Grades and Thicknesses
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+2°C
+2°C
+2°C
+15°C
MAX
+8°C
+25°C
+30°C
+40°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the Softbox VIP
Reusable Carton Design
Designed for sustainability with robust, reusable carton for simplistic reverse logistics
Integrated Handles
Easy to transport design
Vacuum Insulated Panels (VIP)
Extended hold times for 96+ and 120+ hours
Dual wall extended duration VIP box option provides hold times to 240 hour with a 14L payload size
Payload Space - 6 sizes available:
- 5L
- 8L
- 14L
- 16L
- 35L
- 56L
Refrigerants
Designed for temperature ranges: +2°C to +8°C, +15°C to +25°C, -25°C to -15°C, and <-60°C (dry ice)
Integrated Compartment for Real-Time Tracking Device
Visibility to conditional data through parcel viewing window and via CSafe Connect. Integration with single use, multi-use data loggers and real-time devices from TracSafe portfolio
Payload Space
4 sizes available:
5L, 8L, 16L, 35L
Refrigerants
Designed for temperature ranges: +2°C to +8°C, +15°C to +25°C, -25°C to -15°C, and <-60°C (dry ice)
Vacuum Insulated Panels (VIP)
Extended hold times for 120+ hours
Corrugated plastic containment layer reduces risk of damage
Payload
5L, 8L, 14L, 16L, 35L, 56L
Duration
96+, 120+, 240 hours
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
-25°C
+2°C
+15°C
MAX
<-60°C
-15°C
+8°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the Softbox EPS
Ensuring the Integrity of the Payload
Tested against challenging standards
Cost-effective thermal solution
Simple Design
Quick and easy assembly
Payload Space - 4 sizes available:
- 7L
- 14L
- 28L
- 65L
Refrigerants
Designed for temperature ranges:
+2°C to +8°C, +15°C to +25°C
Payload
7-65L
Duration
72-96 hours
Ease of Use
Simple design for quick and easy assembly
Temperature Ranges
MIN
+2°C
+15°C
MAX
+8°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the Cryo Ultra D
Integrated TracSafe RLT
for real time tracking
Additional protection with security seals and lockable shipping case to prevent tampering in transit
Domed-cap shipping case
designed to prevent stacking,
providing a stable, upright
orientation during transit and
handling
Reusable, high-impact-resistant dewar and shipping case
37+ days of hold time
against ISTA 7D thermal
profile
Maintains -70°C or colder
Canister and cryoboxes
included
Utilizes dry ice
Payload
10L
Shipment Visibility
Integrated real time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
MAX
<-70°C
Scan the QR Code to Download the Data Sheet

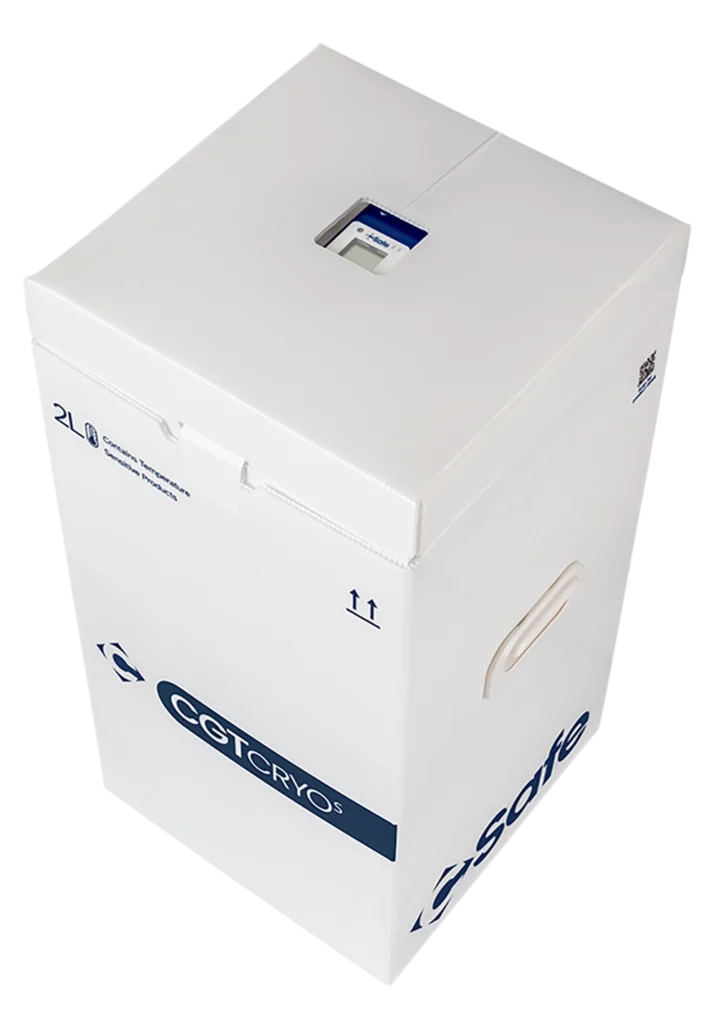

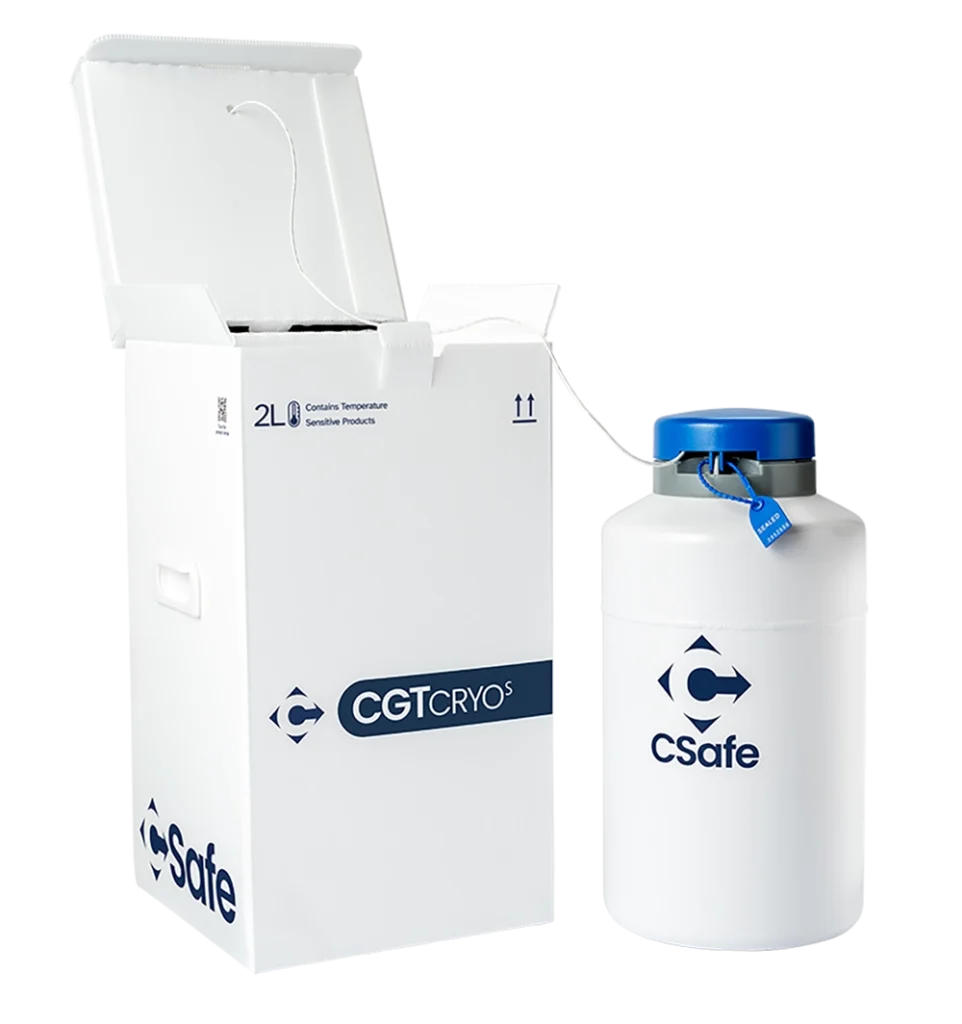

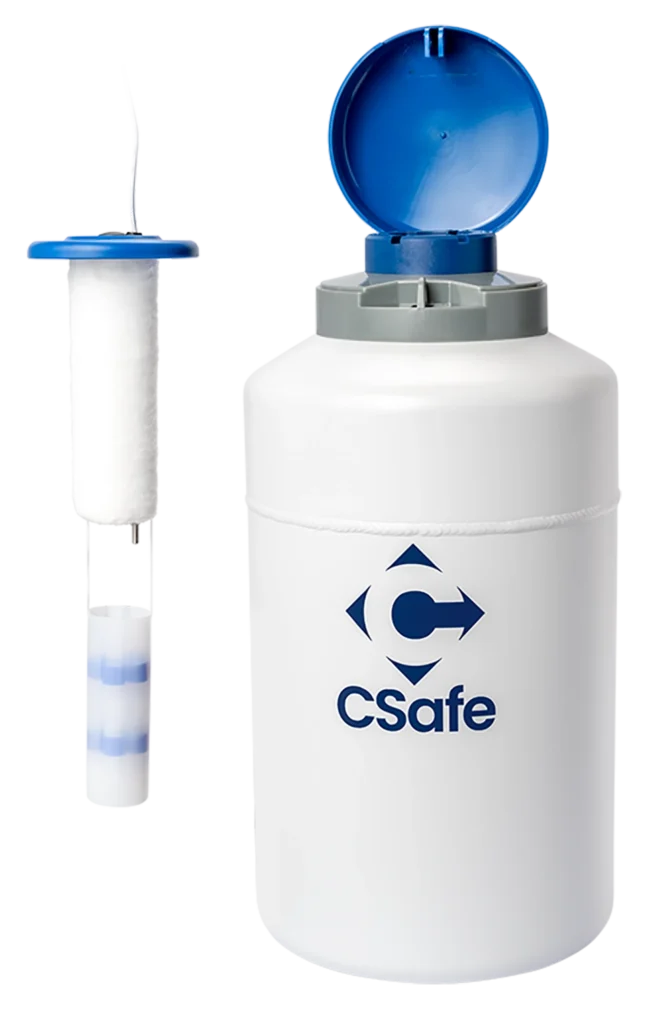

Explore the Cryo S
Hold time independent of
container orientation
Single-use carton and dewar
Additional security seals available to prevent tampering in transit
8+ days of hold time
against ISTA 7D thermal profile
Lightweight outer carton design with integrated handles for hand-carry delivery
Integrated tracking device with access to CSafe Connect for visibility
Liquid nitrogen dry vapor units
-150°C or colder
Attached payload holder
Payload
2L
Shipment Visibility
Integrated real time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
MAX
<-70°C
Scan the QR Code to Download the Data Sheet
Explore the Cryo M
Integrated TracSafe RLT
for real time tracking
Additional protection with security seals and lockable shipping case to prevent tampering in transit
Domed-cap shipping case
designed to prevent stacking,
providing a stable, upright
orientation during transit and
handling
Reusable, high-impact-resistant dewar and shipping case
10+ days of hold time
against ISTA 7D thermal
profile
Qualified and validated to
industry standards (ISTA 3A
for distribution and ISTA 7D
for thermal qualification)
Dewar available in 2L and 10L sizes
Liquid nitrogen dry vapor unit
Canister included
-150°C or colder
Payload
3.7L and 10L
Shipment Visibility
Integrated real time data logger
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
MAX
<-150°C
Scan the QR Code to Download the Data Sheet
Explore the Courier MAX
Soft-Sided Case
Lightweight and easy to clean Available in 3L, 6L, and 12L payload space
Integrated Handles
Durable, hard rubber top handle and strap included for flexible portability
Vacuum Insulated Panels (VIP)
10x better thermal efficiency than foam insulation
Refrigerant Belt
Designed for temperature ranges:
- 2°C to 8°C,
- 2°C to 25°C,
- 15°C to 25°C
- -20°C
with simplified pack out process
Payload
3L, 6L, 12L
Duration
12, 24, & 48 hours
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
+2°C
+2°C
+15°C
MAX
-20°C
+8°C
+25°C
+25°C
Scan the QR Code to Download the Data Sheet
Explore the AX56L
Integrated Handles
Five tie-down-rated carrying handles
Integrated Wheels
Easy to transport design
Display and Control Panel
Monitors payload temperature, ambient temperature, battery status, and voltage
User-selectable temperature set points:
- Cool Mode (+4°C)
- Freeze Mode (-22°C)
Large Integrated Folding Handle
Easy to transport design
Connector Panel
Connects external AC or DC power
Globally compatible power options:
- 100-240 VAC,
- 50/60 Hz,
- 12-24 VDC (car/truck), and
- Internal 43 amp Ahr battery
Vacuum Insulated Panels (VIP)
10x better thermal efficiency than foam insulation
Durable Case with Lid
Rugged, portable battery-powered refrigeration/freezer system to withstand harsh environmental conditions
Payload Space
56L payload capacity
Easy-load wire baskets provide optimum storage and uniform temperature control of the payload
Refrigeration/Freezer System
Unit is powered via AC or DC power 48-hour temperature assurance on a single battery charge
Compressor and resistance heater used to maintain the desired temperature in the payload area
Payload
56.6L
Duration
50 hours at +4ºC, 13 hours at -22ºC
Worldwide Availability
Extensive global network
Temperature Ranges
MIN
-22°C
MAX
+4°C
Scan the QR Code to Download the Data Sheet
Explore CSafe Data Loggers
Usability
Reusable or single-use options
Data Connection
USB, bluetooth, WiFi, and cellular
Extensive global network
Worldwide Availability
Data tracked
Ambient temperature
Data Connection / Communication Type
NFC – Near Field Communication
Scan the QR Code to Download the Data Sheet
